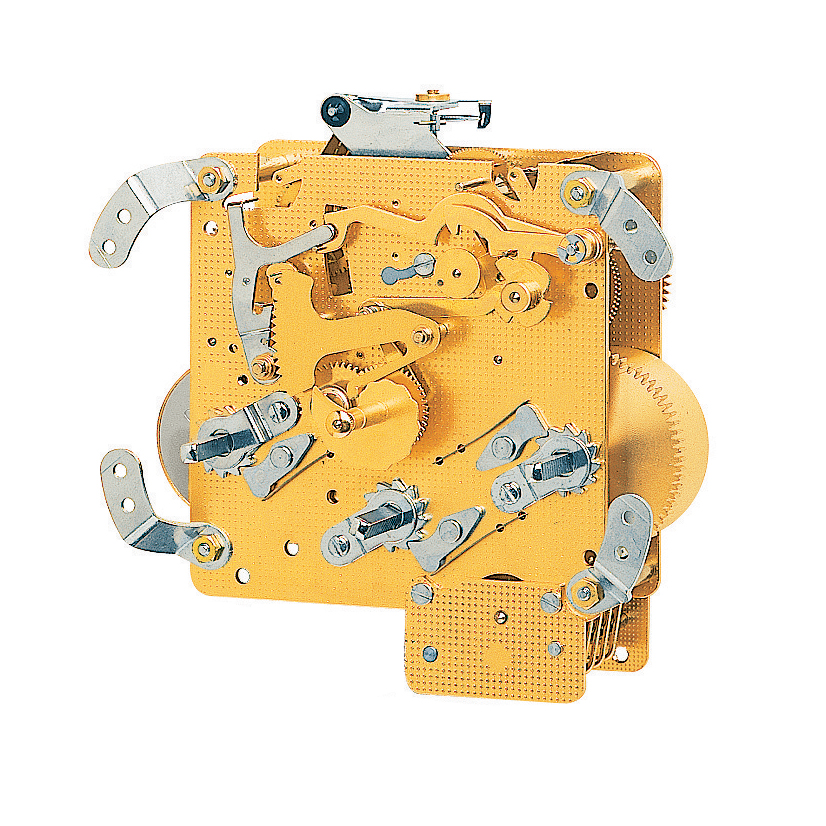

Table clock movement Hermle 340-020, 8 days, floating balance, stroke on gong, Westminster
Product number:
4113-104697
Packaging Unit:
1
From Stock
Downloads
| Article name: | Table clock movement |
|---|---|
| Brand: | Hermle |
| Calibre number sorting: | 0340-020 |
| Dimensions height mm: | 32 |
| Dimensions width mm: | 100 |
| Drive: | Mainspring |
| External dimension length: | 100 |
| Fixing: | 4 tabs |
| Function: | Floating balance |
| Hammer position: | square, hammer bottom right |
| Hand wavelength mm: | 33 |
| Number of hammers: | 5 |
| N° de calibre: | 340-020 |
| Punch type: | Gong |
| Run-time: | 8 days |
| Shock cycle STD: | 4/4 |
| Square internal dimensions length mm: | 2.2 |
| Square internal dimensions width mm: | 2.2 |
| Type: | Mechanical |
Product information "Table clock movement Hermle 340-020, 8 days, floating balance, stroke on gong, Westminster"
- Installation Ø approx. 160 mm
- Center hole Ø at least 8 mm
- Installation depth 65 mm
- Depth with hands 85 mm
- Dial thickness up to 12 mm
Like our reference 336494 table clock movement IF, but without additional accessories.
- Center hole Ø at least 8 mm
- Installation depth 65 mm
- Depth with hands 85 mm
- Dial thickness up to 12 mm
Like our reference 336494 table clock movement IF, but without additional accessories.
Manufacturer Informations
Name: Hermle DREHTEILE UND UHREN GmbH & Co. KG
Street: Mühlstr. 3
City: 78564 Reichenbach
Country: DE
Email: info@hermle-drehteile.de
Phone: 49 7429/9401-0
