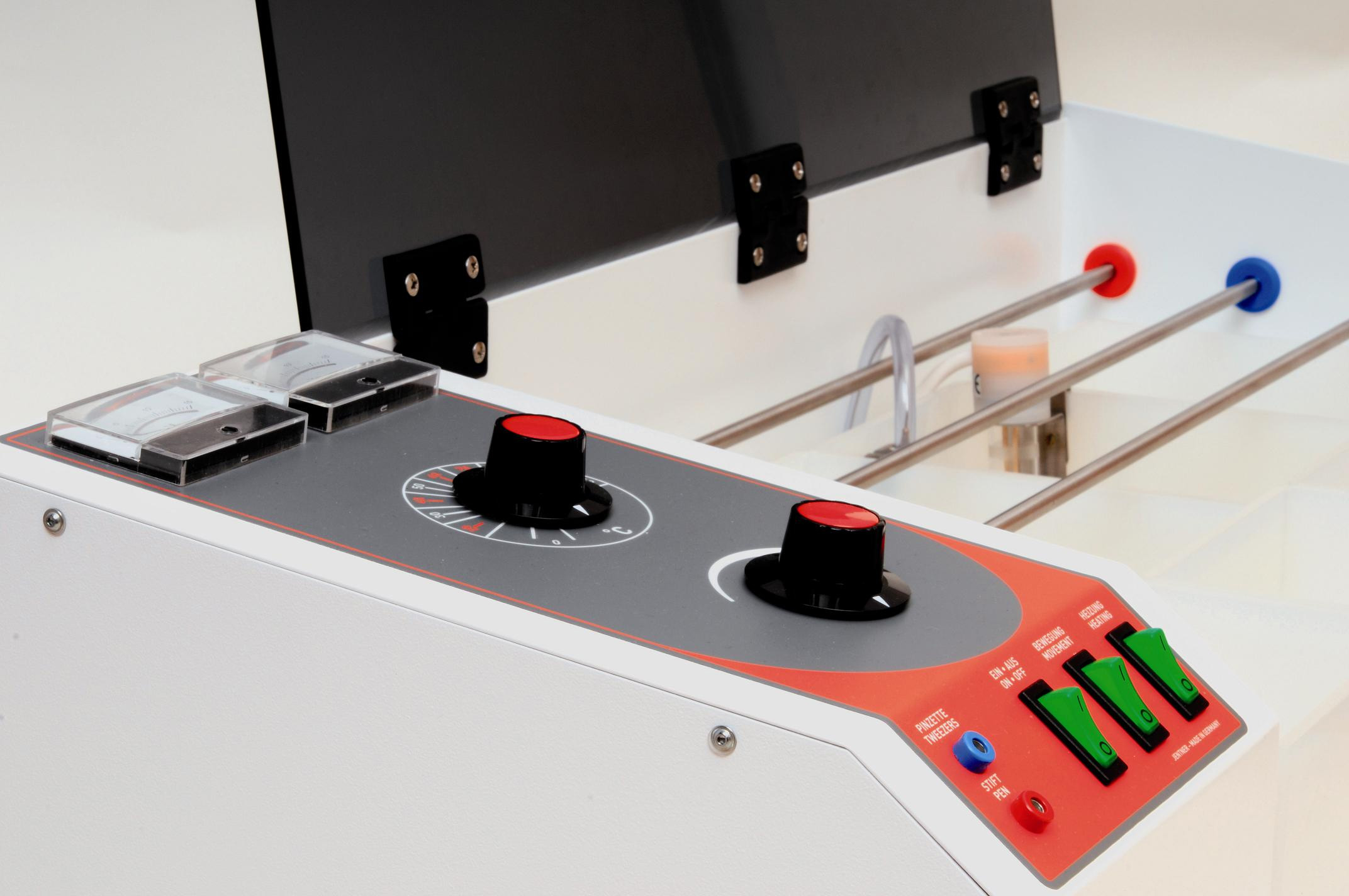

Galvanising unit KGA 2000
Product number:
202544
Packaging Unit:
1
Delivery time approx. 4 to 6 weeks
| Article name: | Galvanising unit KGA 2000 |
|---|---|
| Brand: | Jentner |
| Dimensions height mm: | 260.00 |
| Dimensions width mm: | 330.00 |
| External dimension length: | 480.00 |
| Gross weight grams: | 15500.00 |
| Volt/Hz: | 230 / 50 |
| Watt: | 400 |
Manufacturer Informations
Name: Jentner
Street: Johann-Staib-Str. 2
City: 75179 Pforzheim
Country: DE
Email: info@jentner.de
Phone: 07231-418094-0
Product information "Galvanising unit KGA 2000"
Rectifier and tray part in plastic housing.
- Max. power 15 A
- Voltage adjustable steplessly from 0-15 volts
- Residual ripple of the rectifier approx. 48%
- Analogue display via voltmeter and amperemeter
- Transparent plastic cover
- Stepless temperature control from 20-100 °C
- Articles move horizontally through all processing trays via a cathode rod
- Connection for quartz immersion heater (option 4 590 063)
- Connection socket for electroplating (option 4 591 052)
Includes
- 3 each of processing and rinsing trays made of plastic, 1.5 litres each
- Temperature sensor with holder
- Max. power 15 A
- Voltage adjustable steplessly from 0-15 volts
- Residual ripple of the rectifier approx. 48%
- Analogue display via voltmeter and amperemeter
- Transparent plastic cover
- Stepless temperature control from 20-100 °C
- Articles move horizontally through all processing trays via a cathode rod
- Connection for quartz immersion heater (option 4 590 063)
- Connection socket for electroplating (option 4 591 052)
Includes
- 3 each of processing and rinsing trays made of plastic, 1.5 litres each
- Temperature sensor with holder
Login
Skip product gallery
Accessoires (required)
Standard article carrier Wieland
Artikel-Nr.: 4590015
With clamping device for article rods, with two interchangeable wires.
PPH tray with cover Wieland
Artikel-Nr.: 4590058
Temperature-resistant up to 80 °C. Capacity 1.5 litres.
PPH tray with cover Wieland
Artikel-Nr.: 4590059
Temperature-resistant up to 80 °C. Capacity: 3 litres
Skip product gallery
Accessoires (optional)
Colour gilding bath cold colour 14 ct
Artikel-Nr.: 245289
Colour:
Pale yellow 14 ct.
Use at room temperature, heating as for conventional electrolytes is not required. Low repair and maintenance costs since neither immersion heater nor thermostat or circulation is required. Energy-efficient Ready to use. Includes 1 g fine gold, contains cyanide. To create decorative, thin but hard colour gilding on all non-ferrous and precious metal alloys Contents 1 litres Application Anodes - stainless steel Tray: glass or plastic Goods movement: no Temperature: 18-25 °C Voltage: 3V Time: 10-30 seconds
Colour gilding bath cold colour red
Artikel-Nr.: 245290
Colour:
red
Use at room temperature, heating as for conventional electrolytes is not required. Low repair and maintenance costs since neither immersion heater nor thermostat or circulation is required. Energy-efficient Ready to use. Includes 1 g fine gold, contains cyanide. To create decorative, thin but hard colour gilding on all non-ferrous and precious metal alloys Contents 1 litres Application Anodes - stainless steel Tray: glass or plastic Goods movement: no Temperature: 18-25 °C Voltage: 3V Time: 10-30 seconds
Colour gilding bath cold colour 18 ct yellow
Artikel-Nr.: 245291
Colour:
Yellow 18 ct.
Use at room temperature, heating as for conventional electrolytes is not required. Low repair and maintenance costs since neither immersion heater nor thermostat or circulation is required. Energy-efficient Ready to use. Includes 1 g fine gold, contains cyanide. To create decorative, thin but hard colour gilding on all non-ferrous and precious metal alloys Contents 1 litres Application Anodes - stainless steel Tray: glass or plastic Goods movement: no Temperature: 18-25 °C Voltage: 3V Time: 10-30 seconds
Colour gilding bath cold colour rose
Artikel-Nr.: 245292
Colour:
rose
Use at room temperature, heating as for conventional electrolytes is not required. Low repair and maintenance costs since neither immersion heater nor thermostat or circulation is required. Energy-efficient Ready to use. Includes 1 g fine gold, contains cyanide. To create decorative, thin but hard colour gilding on all non-ferrous and precious metal alloys Contents 1 litres Application Anodes - stainless steel Tray: glass or plastic Goods movement: no Temperature: 18-25 °C Voltage: 3V Time: 10-30 seconds
Silver gloss bath JE 36
Artikel-Nr.: 245293
(Ready to use). With 36 g of fine silver per litre. Contains cyanide. Achieves high-gloss silver layers. Application: Anodes - fine silver Tray - Glass/PPH Goods movement - yes Temperature - 20-25 °C Voltage - 0.5-1.2 V Time - 5-50 min.
Degreasing bath JE 610
Artikel-Nr.: 245296
Preparation salt, cyanide, 60-90 g per litre. For all articles for degreasing before electroplating treatment. Application: Anodes - stainless steel Tray - glass/PPH Goods movement - no Temperature - 15-30 °C Voltage - 8-10 V Time - 30-60 sec.
Black rhodium bath JE 23
Artikel-Nr.: 247450
Concentrate with 2 g of rhodium per litre. The products achieve dark, anthracite rhodium plating and are extremely resistant to abrasion. Application: Anodes - titanium/mixed oxide Tray - Glass/PPH Goods movement - yes Temperature - 18-25 °C Voltage - 1.8-2.2 V Time - 1-2 minutes
Black ruthenium bath JE 12
Artikel-Nr.: 247464
Article name:
Ruthenium bath JE 12
Ready to use. Includes 5 g ruthenium. The products obtain a dark, grey-black surface. The bath preserves lasting shine. Application: Anodes - titanium or mixed oxide Tray - PPH Goods movement - yes Temperature - 60-70 °C Voltage - 2-3 V Time - 2-4 minutes
Stainless steel V2A anode with hanger Wieland
Artikel-Nr.: 4590020
Article name:
Stainless steel V2A anode
For degreasing and colour gilding baths.
Titanium anode with hanger, platinum-plated Wieland
Artikel-Nr.: 4590021
Article name:
Titanium anode
For rhodium plating, adhesion gold plating, gold plating, as well as all acidic precious metal baths.
Pure silver anode with hanger, Wieland
Artikel-Nr.: 4590023
Article name:
Fine silver anode
For matt and gloss silver baths.
Copper anode with hanger, Wieland
Artikel-Nr.: 4590025
Article name:
Copper anode
For cyanide copper baths.
Quartz immersion heater
Artikel-Nr.: 4590063
For connection to a thermostat or an electrical outlet.
Electroplating kit
Artikel-Nr.: 4591052
With self-tensioning cross forceps and electrode pen. The convenient alligator clip facilitates connection to a rectifier.
Electrolytic degreasing ZFM, 50 g preparation salt Wieland
Artikel-Nr.: 4637001
Preparation salt, cyanide, 50 g per litre. For all articles for degreasing before electroplating treatment. Application: Anodes - stainless steel Tray - glass/PPH Goods movement - no Temperature - 15-30 °C Voltage - 6-8 V Time - 30-60 sec.
Hard gloss gilding pale yellow Wieland
Artikel-Nr.: 4637002
Colour:
Pale yellow 14 ct.
Preparation salt with 1 g fine gold per litre, contains cyanide. To create decorative, thin but hard colour gilding on all non-ferrous and precious metal alloys. Content: 30 g. Application: Anodes - stainless steel Tray - PPH Goods movement - no Temperature - 50-60 °C Voltage - 6-8 V Time - 20-30 sec.
Hard gloss gilding reddish Wieland
Artikel-Nr.: 4637003
Colour:
reddish
Preparation salt with 1 g fine gold per litre, contains cyanide. To create decorative, thin but hard colour gilding on all non-ferrous and precious metal alloys. Content: 30 g. Application: Anodes - stainless steel Tray - PPH Goods movement - no Temperature - 50-60 °C Voltage - 6-8 V Time - 20-30 sec.
Electrolytic degreasing ZFM, 1000 g Wieland
Artikel-Nr.: 4637004
Preparation salt, cyanide, 50 g per litre. For all articles for degreasing before electroplating treatment. Application: Anodes - stainless steel Tray - glass/PPH Goods movement - no Temperature - 15-30 °C Voltage - 6-8 V Time - 30-60 sec.
Hard gloss gilding fine gold colour Wieland
Artikel-Nr.: 4637007
Colour:
Fine gold colour
Preparation salt with 1 g fine gold per litre, contains cyanide. To create decorative, thin but hard colour gilding on all non-ferrous and precious metal alloys. Content: 30 g. Application: Anodes - stainless steel Tray - PPH Goods movement - no Temperature - 50-60 °C Voltage - 6-8 V Time - 20-30 sec.
Hard gloss gilding rose Wieland
Artikel-Nr.: 4637009
Colour:
rose
Preparation salt with 1 g fine gold per litre, contains cyanide. To create decorative, thin but hard colour gilding on all non-ferrous and precious metal alloys. Content: 30 g. Application: Anodes - stainless steel Tray - PPH Goods movement - no Temperature - 50-60 °C Voltage - 6-8 V Time - 20-30 sec.
Hard gloss gilding yellow Wieland
Artikel-Nr.: 4637013
Colour:
Yellow 18 ct.
Preparation salt with 1 g fine gold per litre, contains cyanide. To create decorative, thin but hard colour gilding on all non-ferrous and precious metal alloys. Content: 30 g. Application: Anodes - stainless steel Tray - PPH Goods movement - no Temperature - 50-60 °C Voltage - 6-8 V Time - 20-30 sec.
Gloss gold plating bath 750 SC Wieland
Artikel-Nr.: 4637014
(Ready to use) with 4 g fine gold per litre. Contains cyanide. Colour: yellow 20 ct. Acidic gold plating path for creating strong gold plating on non-ferrous metals and silver alloys. Subsequently, gold in colour of your choice. Application: Anodes - titanium Tray - Glass/PPH Goods movement - yes Temperature - 20-30 °C Voltage - 2.8-3.5 V Time - 10-45 sec.
Gold bonding bath AC 3, strongly acidic Wieland
Artikel-Nr.: 4637015
(Ready to use) with 3 g of fine gold per litre. The gold bonding bath AC3 is distinguished by firmly adhering, hard, and tarnish resistant gold bonding. The bath is suited for stainless steels in addition to the conventionally galvanisable materials. Application: Anodes - titanium Tray - Glass/PPH Goods movement - yes Temperature - 20-30 °C Voltage - 3-4 V Time - 10-25 min.
Savor colour gilding bath yellow 14 ct. Wieland
Artikel-Nr.: 4637022
Colour:
Pale yellow 14 ct.
With 1 g of fine gold. Contents: 100 ml concentrate for one litre. Application: Anodes - stainless steel Tray - PPH Goods movement - no Temperature - 50-60 °C Voltage - 6-8 V Time - 20-30 sec.
Savor colour gilding bath yellow 18 ct. Wieland
Artikel-Nr.: 4637023
Colour:
Yellow 18 ct.
With 1 g of fine gold. Contents: 100 ml concentrate for one litre. Application: Anodes - stainless steel Tray - PPH Goods movement - no Temperature - 50-60 °C Voltage - 6-8 V Time - 20-30 sec.
Savor colour gilding bath rose Wieland
Artikel-Nr.: 4637025
Colour:
rose
With 1 g of fine gold. Contents: 100 ml concentrate for one litre. Application: Anodes - stainless steel Tray - PPH Goods movement - no Temperature - 50-60 °C Voltage - 6-8 V Time - 20-30 sec.
Savor colour gilding bath red Wieland
Artikel-Nr.: 4637026
Colour:
red
With 1 g of fine gold. Contents: 100 ml concentrate for one litre. Application: Anodes - stainless steel Tray - PPH Goods movement - no Temperature - 50-60 °C Voltage - 6-8 V Time - 20-30 sec.
Savor colour gilding bath fine gold colour Wieland
Artikel-Nr.: 4637027
Colour:
Fine gold colour
With 1 g of fine gold. Contents: 100 ml concentrate for one litre. Application: Anodes - stainless steel Tray - PPH Goods movement - no Temperature - 50-60 °C Voltage - 6-8 V Time - 20-30 sec.
Gloss nickel bath WN 1 Wieland
Artikel-Nr.: 4637051
(Ready to use). High-performance bath with levelling effect, good throwing power and excellent gloss creation. Application: Anodes - nickel Tray - PPH Goods movement - yes Temperature - 40-60 °C Voltage - 1.8-4.0 V
Copper bath Wieland
Artikel-Nr.: 4637061
(Ready to use). Contains cyanide. For pre-treatment of non-precious metals. Forms a base layer for electroplating. Especially for use in the pretreatment of non-precious metals, such as iron, tin, and zinc alloys. Application: Anodes - copper Tray - Glass/PPH Goods movement - yes Temperature - 18-25 °C Voltage - 1.5-3.0 V Time - 5-15 min.
Silver gloss bath Wieland
Artikel-Nr.: 4637071
(Ready to use). With 30 g of fine silver per litre. Contains cyanide. Achieves high-gloss silver layers. Application: Anodes - fine silver Tray - Glass/PPH Goods movement - yes Temperature - 20-30 °C Voltage - 0.5-1.0 V Time - 5-50 min.
Black rhodium bath Wieland
Artikel-Nr.: 4637087
Concentrate with 2 g of rhodium per litre. The products achieve dark, anthracite rhodium plating and are extremely resistant to abrasion. Application: Anodes - titanium Tray - Glass/PPH Goods movement - yes Temperature - 18-25 °C Voltage - 1.8-2.2 V Time - 2-7 min.
Rhodium gloss bath high white Wieland
Artikel-Nr.: 4637088
Concentrate with 2 g of rhodium per litre. This bath produces a brilliant, high white colour and is highly abrasion resistant. Application: Anodes - titanium Tray - Glass/PPH Goods movement - yes Temperature - 20-25 °C Voltage - 1.8-2.2 V Time - 2-5 minutes
Protective lacquer red Wieland
Artikel-Nr.: 4637101
For covering all soft stones with hardness of less than 7, such as coral, pearl, lapizlazuli, turquoise. The paint can be carefully removed with acetone.
Concealer felt pen, red Wieland
Artikel-Nr.: 4637105
To specifically cover small areas, Covering lacquer can be removed later with alcohol. Felt tip insert individual 4 637 106.
Conductive silver paint Wieland
Artikel-Nr.: 4640211
Ready to use, for pre-treating non-metallic materials before copper-plating. Can also be used for bridging electrical conductor lines.
Skip product gallery
Replacements
PPH tray with cover Wieland
Artikel-Nr.: 4590058
Temperature-resistant up to 80 °C. Capacity 1.5 litres.
