Electrode grinding motor
Product number:
358010
Packaging Unit:
1
From Stock
Downloads
| Application: | universell |
|---|---|
| Article name: | Electrode grinding motor |
| Brand: | PUK |
| Dimensions Ø mm: | 34,000 |
| External dimension length: | 76,00 |
| Gross weight grams: | 200 |
| Special feature: | T-Stecker, Anschluss direkt am PUK |
| Watt: | 6 |
Manufacturer Informations
Name: Lampert Werktechnik GmbH
Street: Ettlebener Str. 27
City: 97440 Werneck
Country: DE
Email: mail@lampert.info
Phone: 09722-9459-0
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Accessoires (required)
slide 1 of 1
T-connector for shutter connection for PUK optical unit + microscope

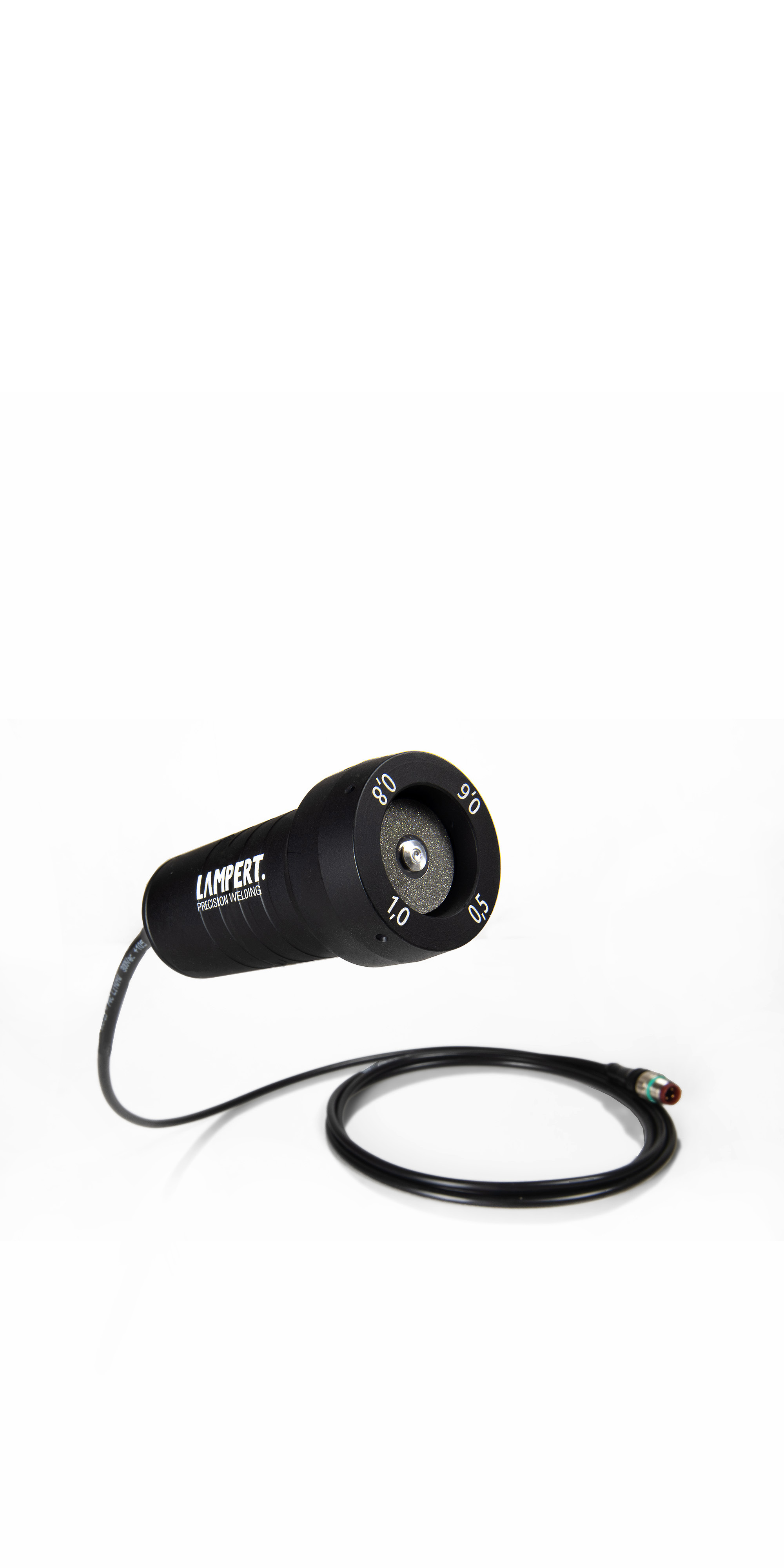

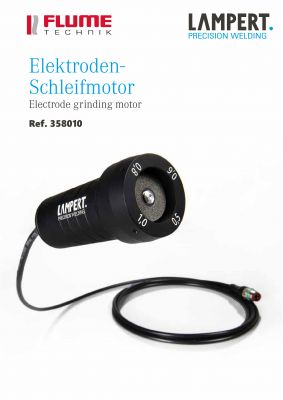

Product information "Electrode grinding motor"
The new grinding motor is a helpful accessory for every PUK welding device. The electrodes can be easily resharpened in the right angle using the suitable pilot hole in the diameter 0.5, 0.6, 0.8 or 1.0 mm.
Durable diamond grinding wheel
Replacement discs are available as accessories and can be changed with ease with the aid of the Allen key provided.
Simple and safe handling
When grinding the electrode tips the electrodes are held onto the rotating diamond disc at a preadjusted angle of 15° and turned between the fingers.
The diamond disc is securely embedded in a stable aluminium housing, so that only the front of the grinding surface is accessible.
Connection directly to the welding machine
The grinding motor is attached to the combined connecting socket of the welding device using the T-connector provided.
The motor is switched on by pressing a button located on the side of the motor housing.
Technical specifications
Power consumption max. 6 W
Dimensions (max. Ø x L) 34 x 76 mm
Weight ca. 200 g
Durable diamond grinding wheel
Replacement discs are available as accessories and can be changed with ease with the aid of the Allen key provided.
Simple and safe handling
When grinding the electrode tips the electrodes are held onto the rotating diamond disc at a preadjusted angle of 15° and turned between the fingers.
The diamond disc is securely embedded in a stable aluminium housing, so that only the front of the grinding surface is accessible.
Connection directly to the welding machine
The grinding motor is attached to the combined connecting socket of the welding device using the T-connector provided.
The motor is switched on by pressing a button located on the side of the motor housing.
Technical specifications
Power consumption max. 6 W
Dimensions (max. Ø x L) 34 x 76 mm
Weight ca. 200 g
