Cleaning machine Elmasolvex VA
Product number:
309321
Packaging Unit:
1
Extra order! Delivery time approx. 4 weeks, return is not possible.
- Description Fully automatic cleaning machine for disassembled and assembled movements. Single-chamber ultrasonic vacuum technology for… More
- Reviews
- Downloads
-
Productvideos
By viewing the video you agree that your data will be transferred to youtube and that you have read the Privacy policy.
Downloads
| Application: | fully automatic |
|---|---|
| Article name: | Cleaning machine Elmasiolvex VA |
| Brand: | Elma |
| Content: | 4,00 |
| Dimensions height mm: | 610,00 |
| Dimensions width mm: | 600,00 |
| External dimension length: | 600,00 |
| Gross weight grams: | 56000,00 |
| Unit content: | Container |
| Unité d'emballage petite: | 1 |
| Volt/Hz: | 230 / 50 |
Manufacturer Informations
Name: Elma Schmidbauer GmbH
Street: Gottlieb-Daimler-Str. 17
City: 78224 Singen
Country: DE
Email: info@elma-ultrasonic.com
Phone: +49 7731 882-0
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Accessoires (required)
slide 4 to 6 of 30
Accessories / spare parts for all available cleaning machines
Accessories / spare parts for all available cleaning machines
Accessories / spare parts for all available cleaning machines
Includes: 1 basket without dividers, H 15 mm 1 basket without dividers, H 30 mm 1 basket with 4 compartments 1 basket with 8 compartments 1 basket with 11 compartments and 1 compartment, round, small 1 basket cover, stainless steel, electropolished (309364) 2 cleaning baskets with cover, stainless steel, electropolished, dia. 20 mm
Stainless steel, RIL SAN coated, white, dia. 80 mm Includes: 1 basket without dividers, H 15 mm 1 basket without dividers, H 30 mm 1 basket with 4 compartments 1 basket with 8 compartments 1 basket with 11 compartments and 1 compartment, round, small 1 basket cover 1 cleaning basket with cover, dia. 20 mm
Includes: 1 basket frame 5 baskets, dia. 64 mm 2 cleaning baskets 20 mm with lid

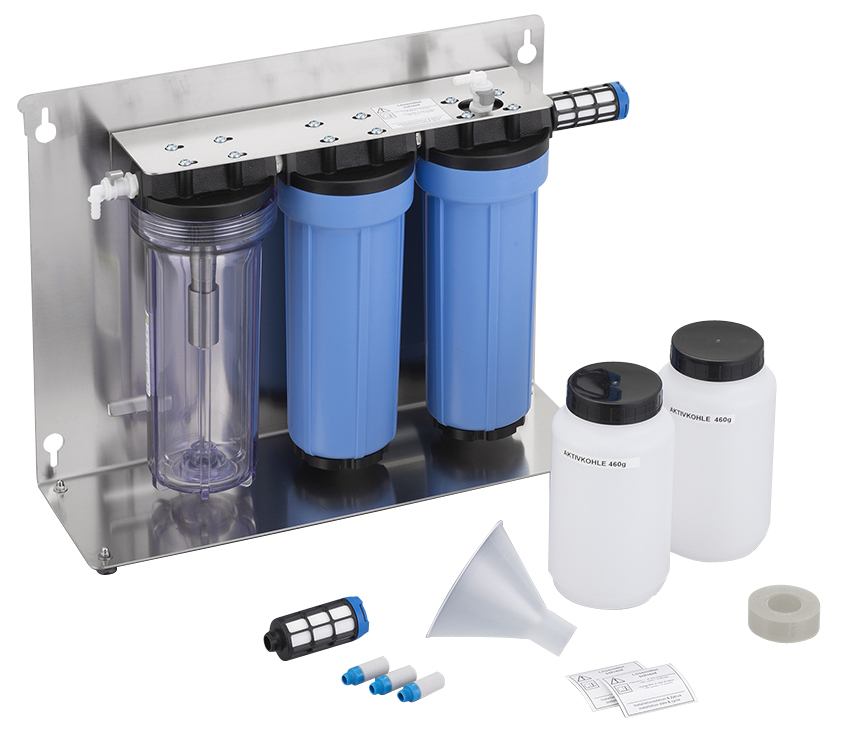

If the exhaust air from the Elmasolvex VA cannot blown to the outside, this unit offers the option of filtering the solvent vapours. Includes: 1 filter unit 1 activated carbon 2 stickers 1 replacement filter 1 PTFE tape 1 hopper

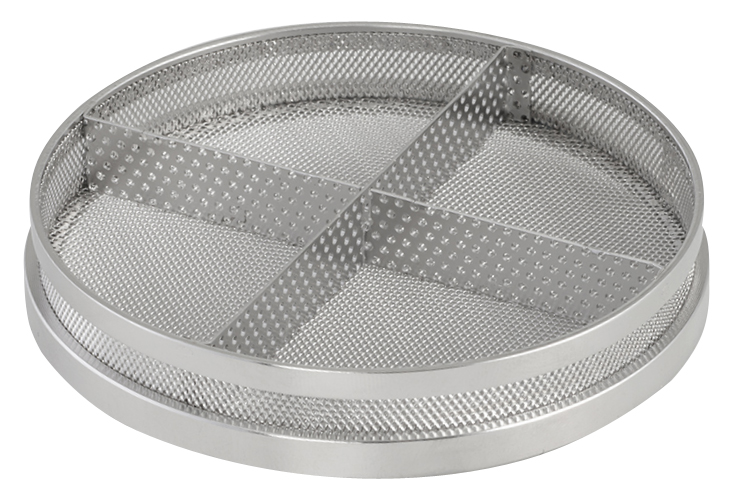

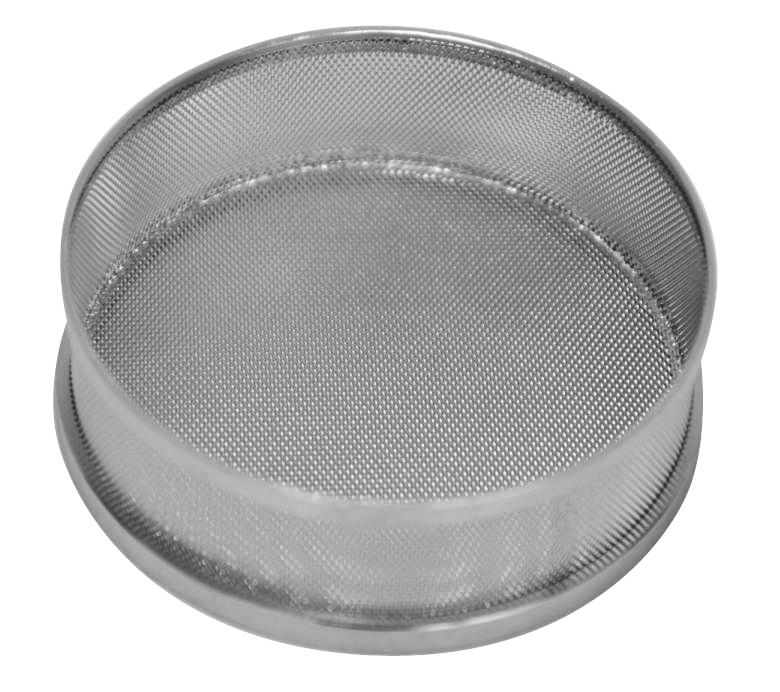

Fits Elmasolvex VA. Stainless steel, electropolished.
Fits Elmasolvex VA. Stainless steel, electropolished.
Fits Elmasolvex VA. Stainless steel, electropolished.

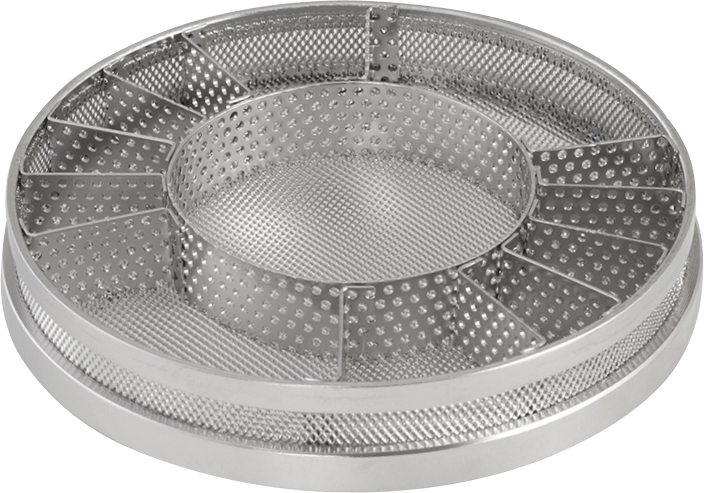

Fits Elmasolvex VA. Stainless steel, electropolished. Centre compartment round, small.
Fits Elmasolvex VA. Stainless steel. Centre compartment round, large

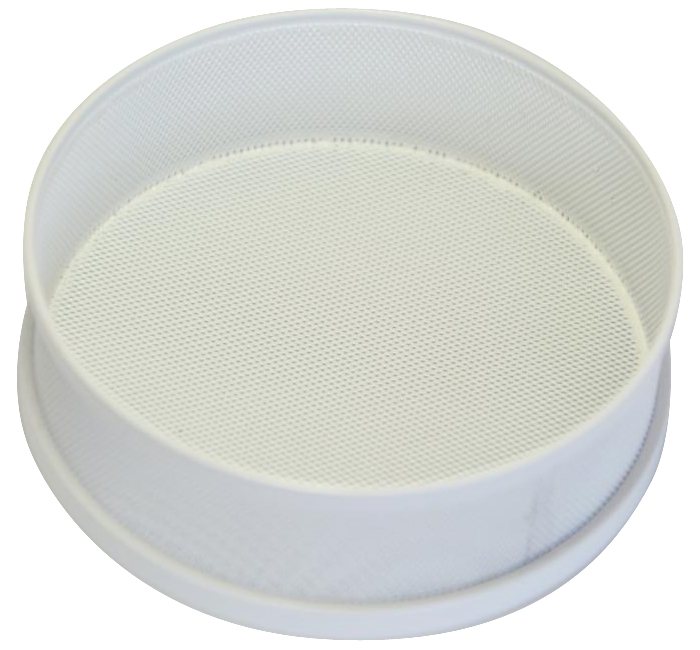

Fits Elmasolvex VA. Double height for larger parts. Stainless steel with white Rilsan coating to protect delicate surfaces of the parts being cleaned.
Accessories / spare parts for all available cleaning machines
Accessories / spare parts for all available cleaning machines
Accessories / spare parts for all available cleaning machines
Accessories / spare parts for all available cleaning machines
Accessories / spare parts for all available cleaning machines
Accessories / spare parts for all available cleaning machines
Accessories / spare parts for all available cleaning machines
Includes: 1 basket without dividers, H 15 mm 1 basket without dividers, H 30 mm 1 basket with 4 compartments 1 basket with 8 compartments 1 basket with 11 compartments and 1 compartment, round, small 1 basket cover, stainless steel, electropolished (309364) 2 cleaning baskets with cover, stainless steel, electropolished, dia. 20 mm
Stainless steel, RIL SAN coated, white, dia. 80 mm Includes: 1 basket without dividers, H 15 mm 1 basket without dividers, H 30 mm 1 basket with 4 compartments 1 basket with 8 compartments 1 basket with 11 compartments and 1 compartment, round, small 1 basket cover 1 cleaning basket with cover, dia. 20 mm
Includes: 1 basket frame 5 baskets, dia. 64 mm 2 cleaning baskets 20 mm with lid
Accessoires (optional)
slide 4 to 6 of 18
Article name:
Cleaner L R 677
Water free, ready to use cleaning solution with ammonia for clocks of all kinds. Hydrocarbon-based, CFC-free. American product. Dissolves oil and grease residues as well as grinding, polishing and wax residue, also in conjunction with graphite lubricants. Stronger brightening and de-oxidising of non-ferrous and precious metals. Long shelf life.
Recommended rinse solution L R 3.
Article name:
Rinse L R 3
Water free, ready to use rinse solution on hydrocarbon basis, CFC-free. American product.
Formulated as a rinse for L R 111 and L R 667. Residue-free drying.
One-bath lubricant for vibration method, ready to use. For automatic lubrication of assembled watches to be cleaned. Used after the rinsing process.
New improved formula. Also for use in ultrasonic watch cleaning machines.
Water free, ready to use cleaning solution for disassembled and assembled movements, as well as for precision equipment. Suitable for rotation and vibration. Removes oils, gummy oils, greasy dirt, and pigment dirt. Recommended rinse solution Flume Technik S.
New improved formula. Also for use in ultrasonic watch cleaning machines.
Water free, ready to use rinsing solution for disassembled and assembled movements, as well as precision equipment parts that have been previously cleaned with Flume Technik R or W. Suitable for rotation and vibration.

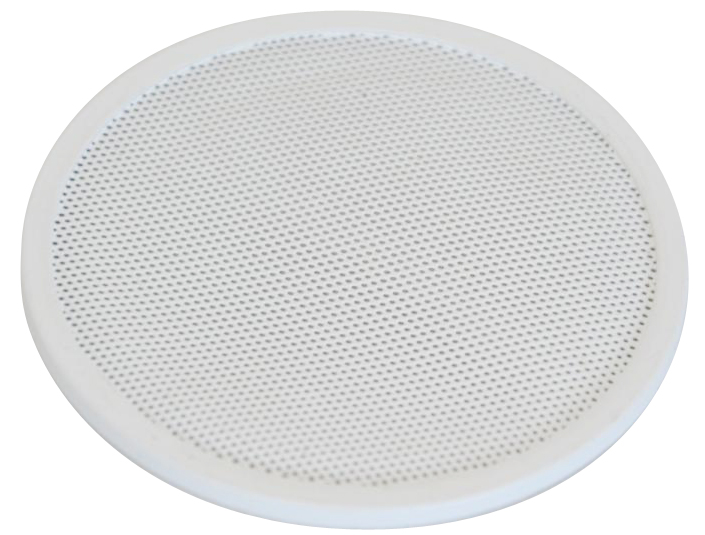

Fits Elmasolvex VA. Stainless steel with white Rilsan coating to protect delicate surfaces of the parts being cleaned.

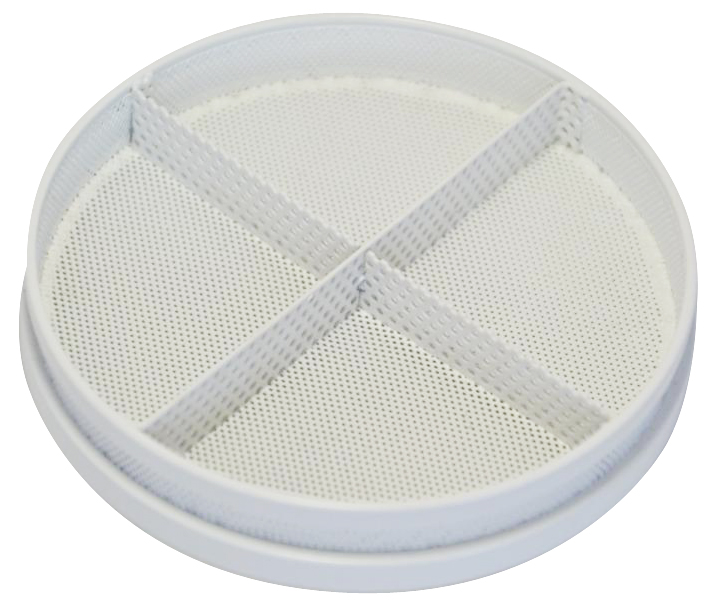

Fits Elmasolvex VA. Stainless steel with white Rilsan coating to protect delicate surfaces of the parts being cleaned.
Fits Elmasolvex VA. Stainless steel with white Rilsan coating to protect delicate surfaces of the parts being cleaned.
Fits Elmasolvex VA. Stainless steel with white Rilsan coating to protect delicate surfaces of the parts being cleaned.
Fits Elmasolvex VA. Stainless steel with white Rilsan coating to protect delicate surfaces of the parts being cleaned. Centre compartment round, small.

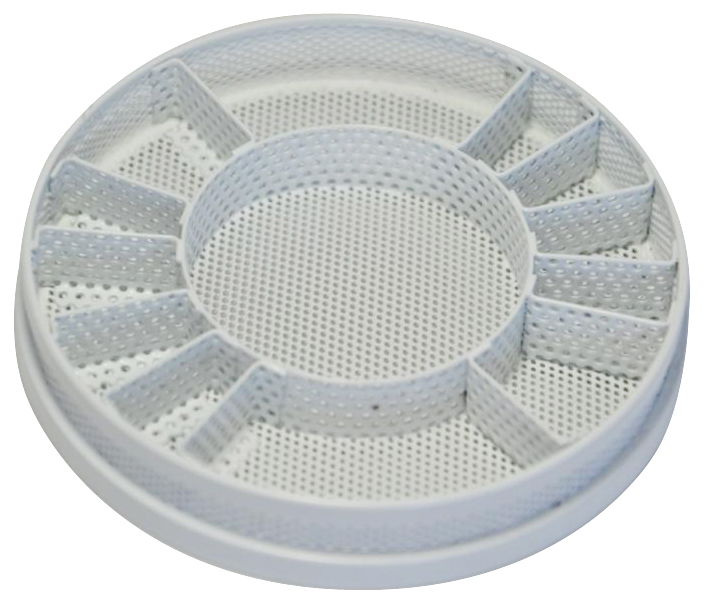

Fits Elmasolvex VA. Stainless steel with white Rilsan coating to protect delicate surfaces of the parts being cleaned. Centre compartment round, large
Fits Elmasolvex VA. Double height for larger parts. Stainless steel with white Rilsan coating to protect delicate surfaces of the parts being cleaned.
Water-free, ready to use cleaning solution based on hydrocarbon, CFC-free. Wugasol rapidly dissolves dirt, dried and gummy oils, and grinding and polishing agents. Suitable for vibration and rotation machines. Recommended rinse solution Wugaclear.
Water-free, ready to use rinse solution based on hydrocarbon, CFC-free. Swiss product. Completely absorbs Wugasol, residue-free drying.
Content:
2
Water-free, ready to use cleaning solution based on hydrocarbon, CFC-free. Swiss product. Oil and grease residues and waxes, abrasives, and polishing materials are completely dissolved, also in conjunction with residues of mechanical material abrasion. Light deoxidation and brightening of non-ferrous and precious metals. Long shelf life. No damaging effect even with longer cleaning cycles. Recommended rinse solution F45.
Content:
5
Water-free, ready to use cleaning solution based on hydrocarbon, CFC-free. Swiss product. Oil and grease residues and waxes, abrasives, and polishing materials are completely dissolved, also in conjunction with residues of mechanical material abrasion. Light deoxidation and brightening of non-ferrous and precious metals. Long shelf life. No damaging effect even with longer cleaning cycles. Recommended rinse solution F45.
Content:
5
Water-free, ready to use rinse solution based on hydrocarbon, CFC-free. Swiss product. Formulated as a rinse for Rubisol. Completely absorbs Rubisol, residue-free drying.
Article name:
Cleaner L R 111
Water free, ready to use cleaning solution with ammonia, hydrocarbon-based, CFC-free. American product. Dissolves oil and grease residues as well as grinding, polishing and wax residue, also in conjunction with graphite lubricants. Slight brightening and de-oxidising of non-ferrous and precious metals. Long shelf life. Does not damage high quality plastics in watches. Recommended rinse solution L R 3.
Article name:
Cleaner L R 677
Water free, ready to use cleaning solution with ammonia for clocks of all kinds. Hydrocarbon-based, CFC-free. American product. Dissolves oil and grease residues as well as grinding, polishing and wax residue, also in conjunction with graphite lubricants. Stronger brightening and de-oxidising of non-ferrous and precious metals. Long shelf life.
Recommended rinse solution L R 3.
Article name:
Rinse L R 3
Water free, ready to use rinse solution on hydrocarbon basis, CFC-free. American product.
Formulated as a rinse for L R 111 and L R 667. Residue-free drying.
One-bath lubricant for vibration method, ready to use. For automatic lubrication of assembled watches to be cleaned. Used after the rinsing process.
New improved formula. Also for use in ultrasonic watch cleaning machines.
Water free, ready to use cleaning solution for disassembled and assembled movements, as well as for precision equipment. Suitable for rotation and vibration. Removes oils, gummy oils, greasy dirt, and pigment dirt. Recommended rinse solution Flume Technik S.
New improved formula. Also for use in ultrasonic watch cleaning machines.
Water free, ready to use rinsing solution for disassembled and assembled movements, as well as precision equipment parts that have been previously cleaned with Flume Technik R or W. Suitable for rotation and vibration.
Fits Elmasolvex VA. Stainless steel with white Rilsan coating to protect delicate surfaces of the parts being cleaned.
Replacements
slide 1 to 2 of 2
To accommodate 5 baskets. Electrically conductive.
Product information "Cleaning machine Elmasolvex VA"

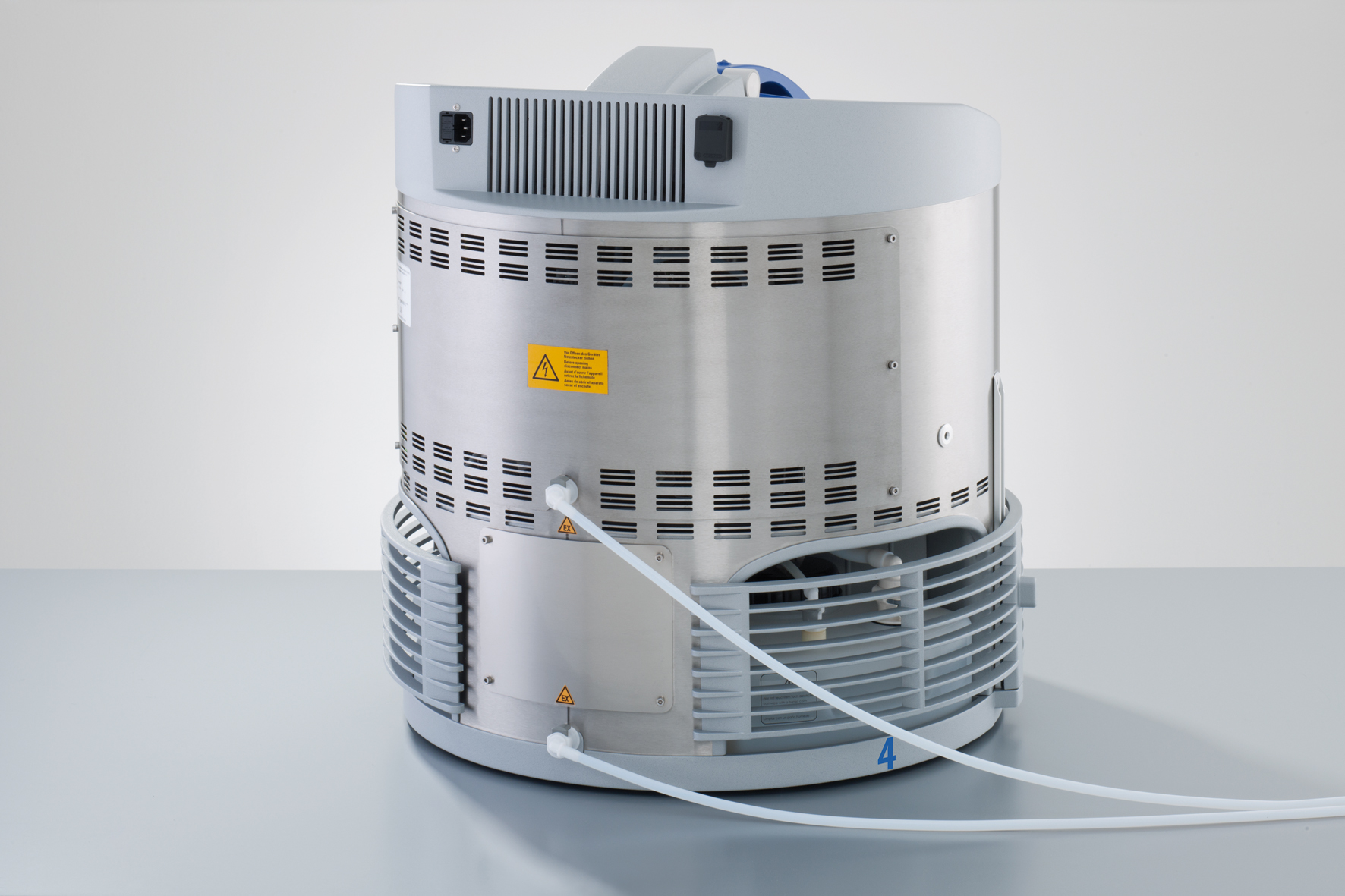

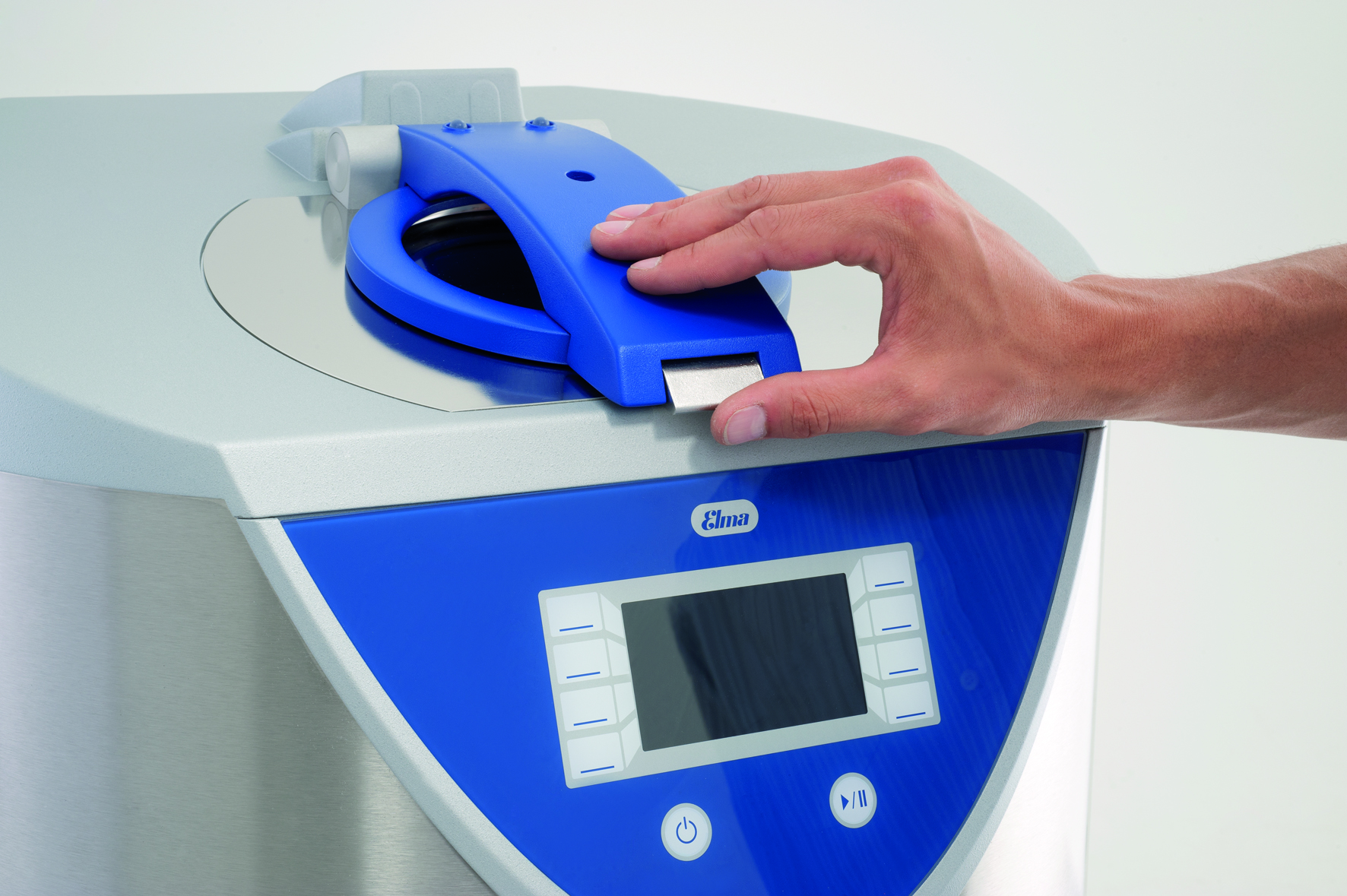

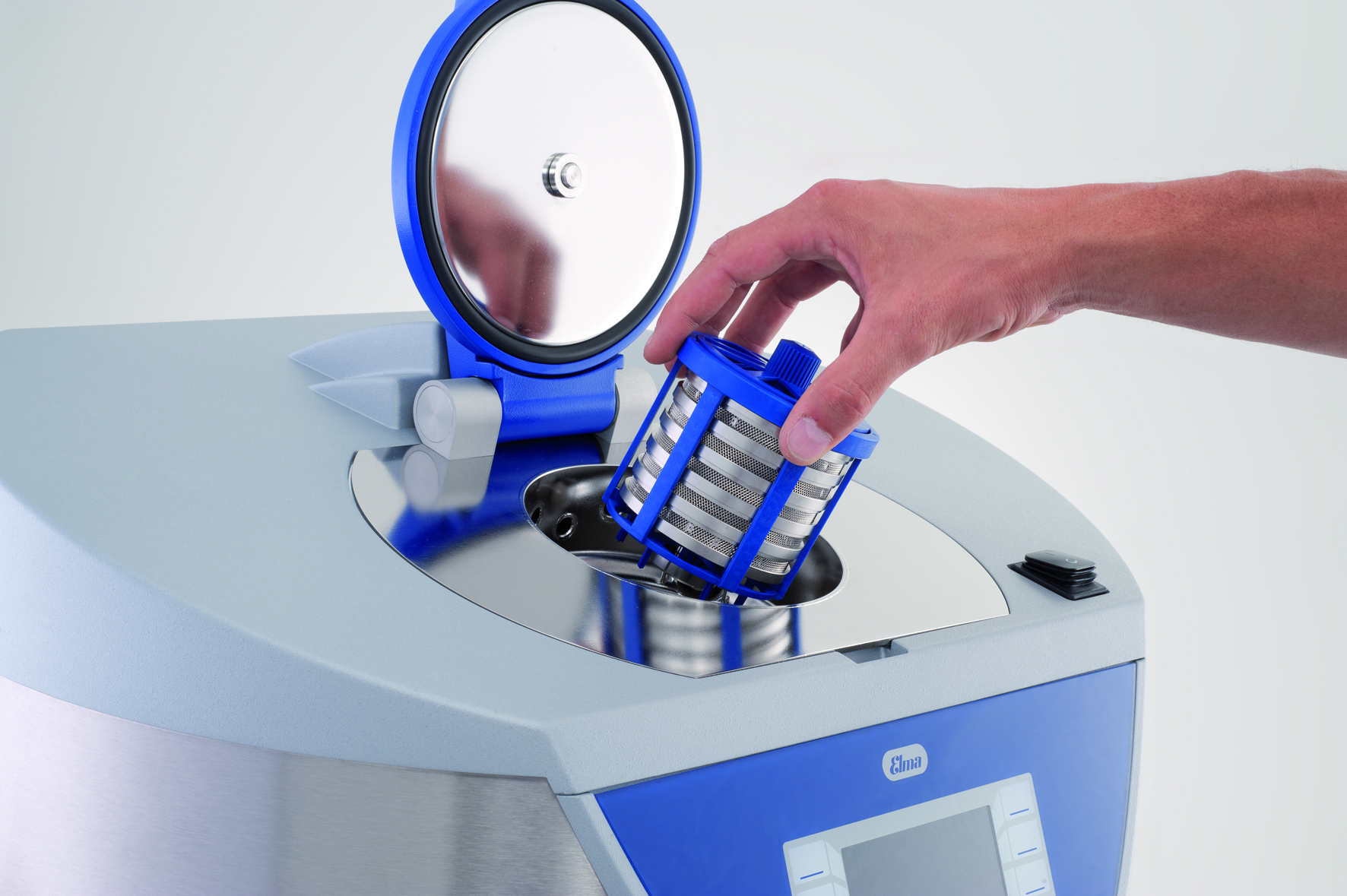

Fully automatic cleaning machine for disassembled and assembled movements.
Single-chamber ultrasonic vacuum technology for cleaning with solvents.
This unit is equipped with vacuum technology and all measures required by TUV and EU standards for explosion-proof operation, resulting in self-sufficient, intrinsic explosion protection. As a result, that the explosion protection measures integrated in machine prevent any fire hazard when used as intended. Use of ultrasound is therefore permitted.
Protection against solvent vapours and odours by suction or autonomous filter system.
Vacuum technology reaches even inaccessible areas and removes air bubbles from movements.
Cleaning and rinsing with multi-frequency ultrasound in rotation or oscillation process.
Machine is fully rotatable, making the liquid containers and connections easily accessible.

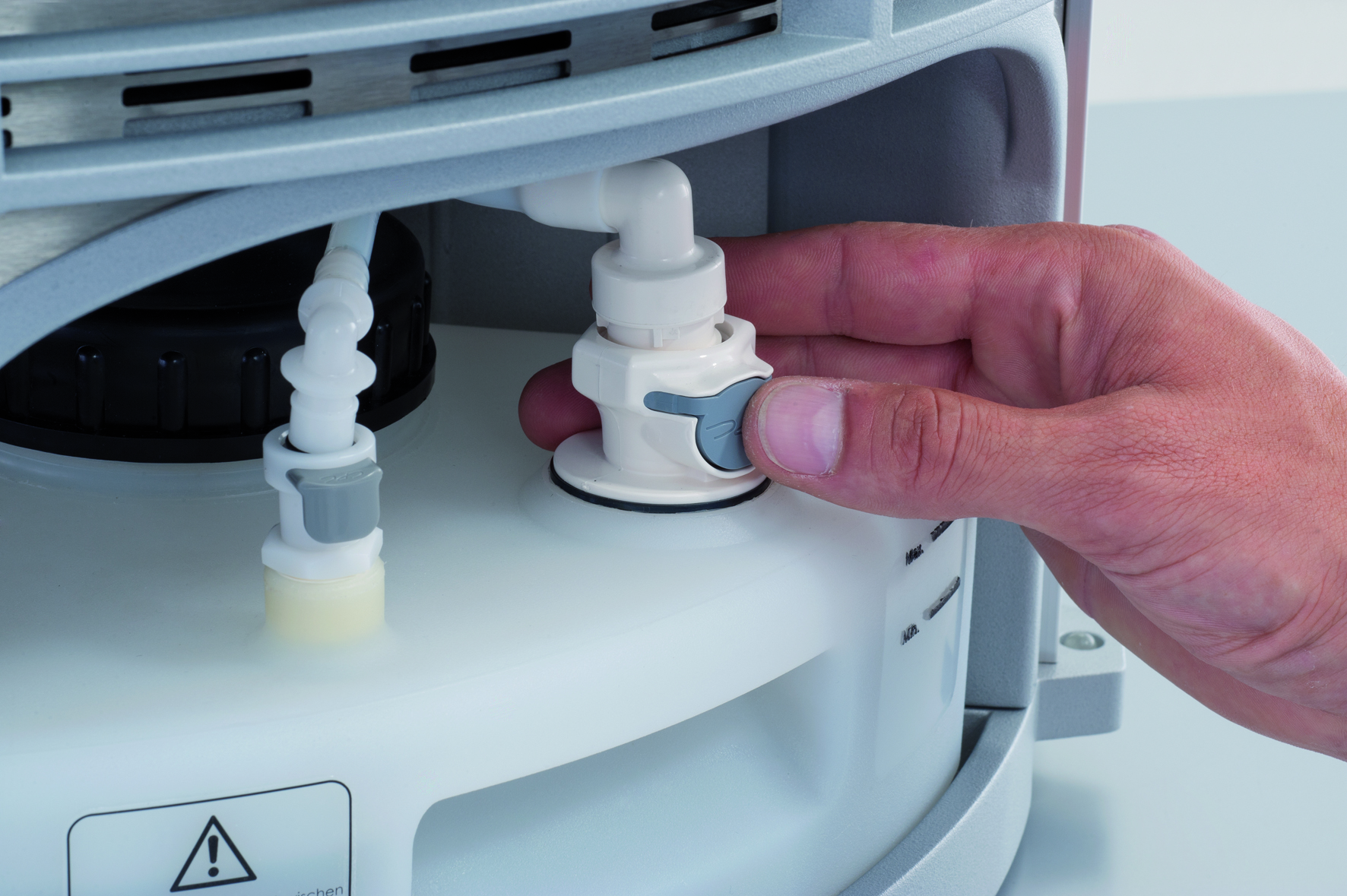

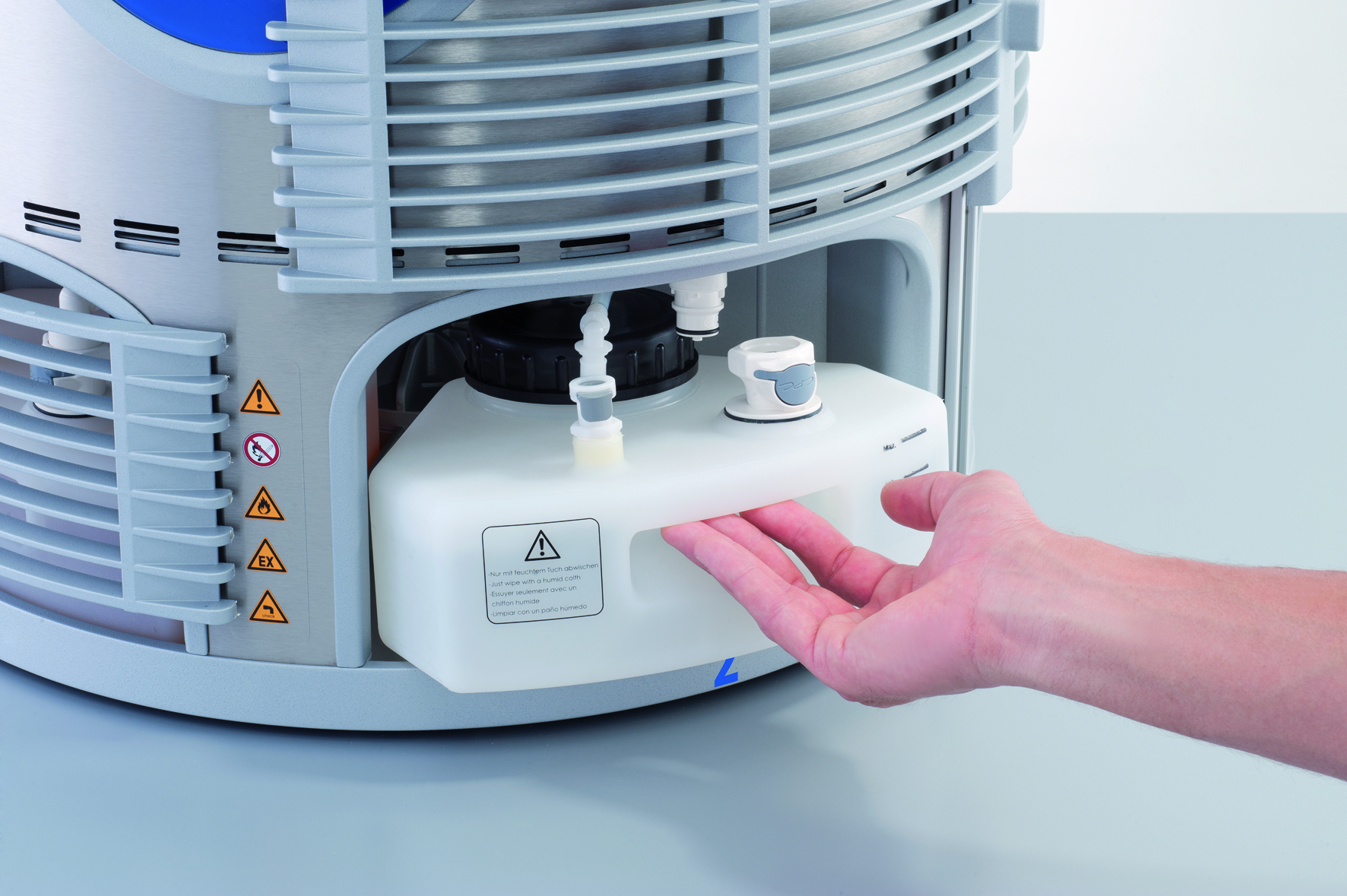

Media containers are easily replaceable and rinsable. Integrated particle filter for longer useful life of the cleaning and rinsing solutions.
Suitable for cleaning baskets with dia. 64 and 80 mm.
Includes:
Cleaning machine

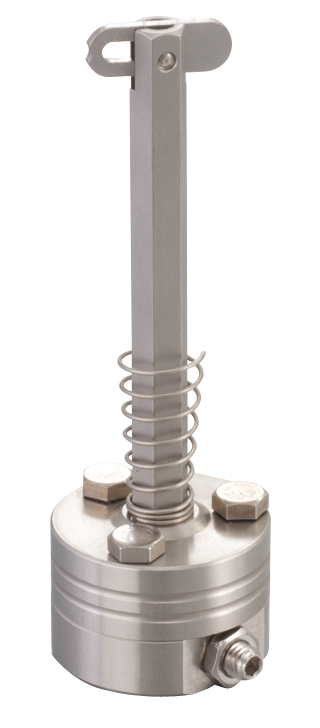

Basket holder, 80mm
4 liquid containers and exhaust hoses
Technical Specifications:
External dimensions: dia. 600mm, height 610mm
Exhaust connection: DN 6 mm (active)

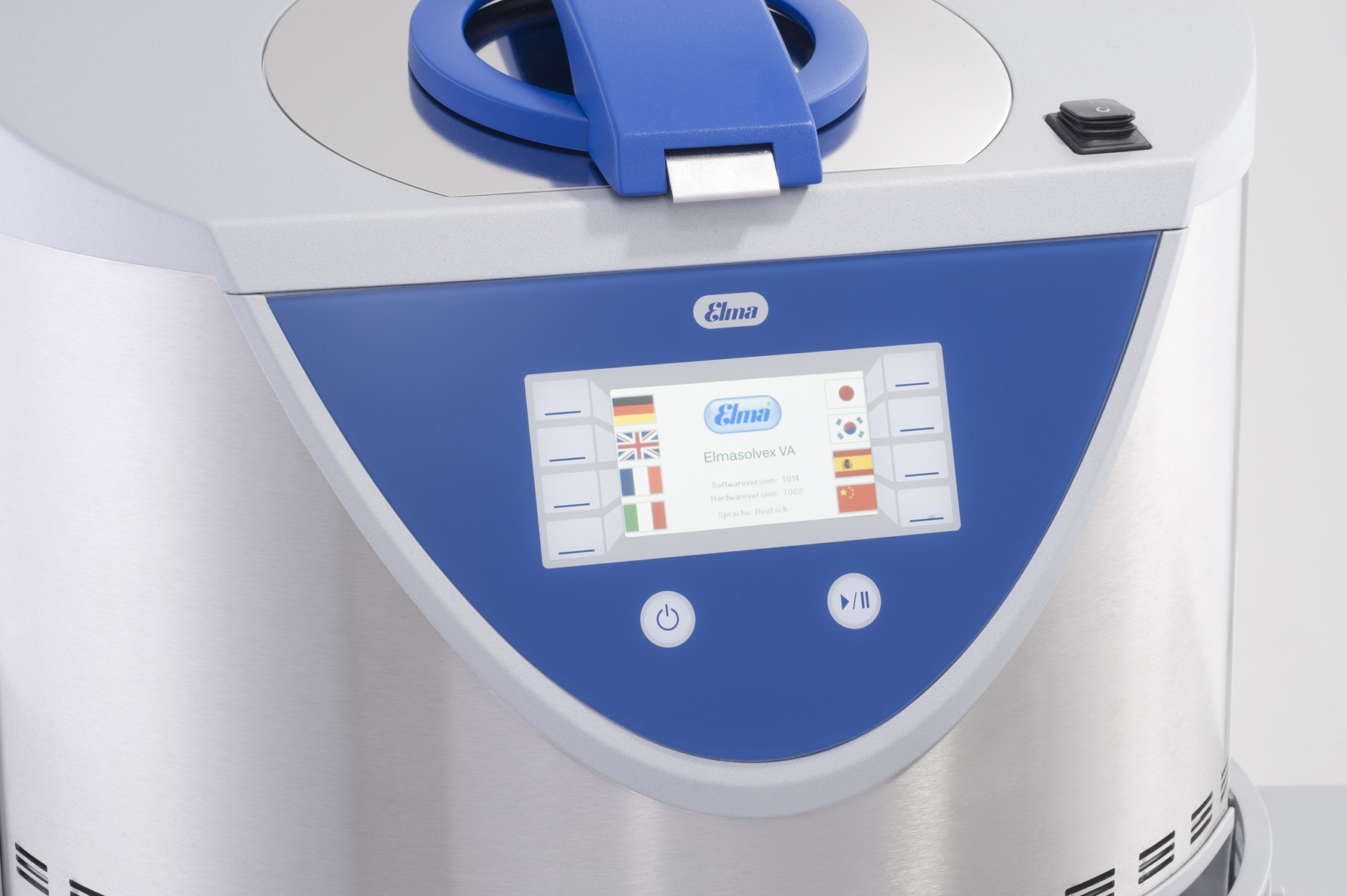

Number of programs: 6 fixed and 12 programmable
Ultrasound: Frequency switchable 40/80 kHz, power adjustable 30 to 100%
Rotation: speed from 1 to 20 RPM.
Oscillation, deflection mode, cleaning/rinsing (1/s) (°) 20-60
Spinning: speed range freely adjustable up to max. 1400 RPM
Drying processes: vacuum, heating-assisted
230 V / 50 Hz, 220 Watts.
Single-chamber ultrasonic vacuum technology for cleaning with solvents.
This unit is equipped with vacuum technology and all measures required by TUV and EU standards for explosion-proof operation, resulting in self-sufficient, intrinsic explosion protection. As a result, that the explosion protection measures integrated in machine prevent any fire hazard when used as intended. Use of ultrasound is therefore permitted.
Protection against solvent vapours and odours by suction or autonomous filter system.
Vacuum technology reaches even inaccessible areas and removes air bubbles from movements.
Cleaning and rinsing with multi-frequency ultrasound in rotation or oscillation process.
Machine is fully rotatable, making the liquid containers and connections easily accessible.
Media containers are easily replaceable and rinsable. Integrated particle filter for longer useful life of the cleaning and rinsing solutions.
Suitable for cleaning baskets with dia. 64 and 80 mm.
Includes:
Cleaning machine
Basket holder, 80mm
4 liquid containers and exhaust hoses
Technical Specifications:
External dimensions: dia. 600mm, height 610mm
Exhaust connection: DN 6 mm (active)
Number of programs: 6 fixed and 12 programmable
Ultrasound: Frequency switchable 40/80 kHz, power adjustable 30 to 100%
Rotation: speed from 1 to 20 RPM.
Oscillation, deflection mode, cleaning/rinsing (1/s) (°) 20-60
Spinning: speed range freely adjustable up to max. 1400 RPM
Drying processes: vacuum, heating-assisted
230 V / 50 Hz, 220 Watts.
